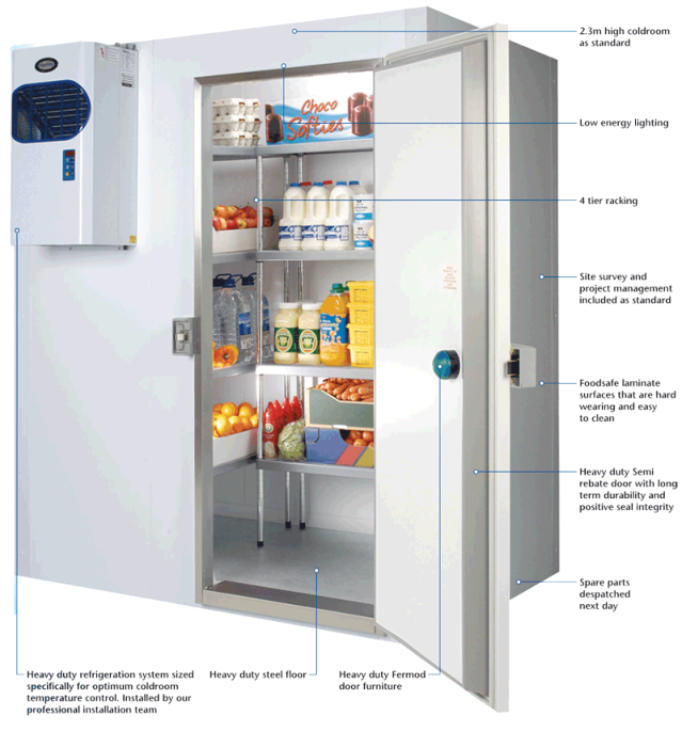

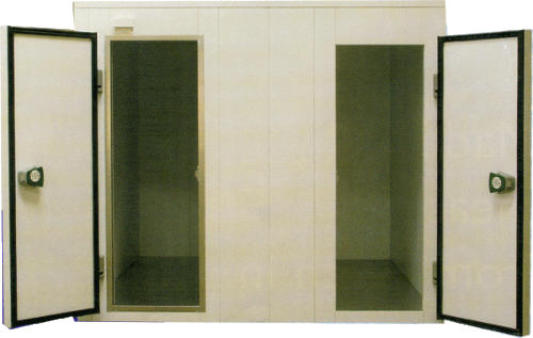

Cold Rooms

Coldrooms made to measure. All temperatures can be supplied. Fully installed Prices on application. Bespoke design to optimise space available, any size, shape or height. Doors, refrigeration units and shelving can be positioned anywhere to maximise space. Adjustable panel sizes for any sites with limited or tight access Dual temperature rooms, triple compartment and stand alone rooms to suit your needs. Any door widths to suit application.
Thornbury Refrigeration Ltd| 34 Mill Lane | Witham | CM8 1BP | Tel: 01 376 512974
Thornbury Refrigeration Ltd 34 Mill Lane Witham Essex CM8 1BP Tel: 01 376 512974
Dairy Cabinets
Freezer Cabinets
Cold Rooms
Serve Over Cabinets
Catering & Bakery Cabinets
Cake & Hot Food Cabinets
Free Heat
Products
A : ISOTHERMAL PANEL B: CEMENT BULKHEAD C : STEAM BARRIER D: REINFORCED CEMENT FLOOR E: 40kg/m3 / A.N.C.POLYURETHANE INSULATION F: HYGIENE SPACE
  • Thornbury Refrigeration can supply frozen or refrigerated chillers
  • We have a range of LOW noise compressors
  • Suppliers of Arneg and Foster products
  • We can supply newsagents, to keep drinks and food chilled or frozen
  • All models are in stock for fast delivery
  • from seafood to raw meat to cold drinks
  • The foster range can help you plan and prepare
  • Cold rooms built and installedAsk us for details
  • Keeping food fresh from dairy to meatFresh deli and meat
  • Frozen cabinets and serve overs and chilled dairy
  • Free site survey on all remote unitsVast experience of our industry
  • Dual temperature rooms triple compartment and stand alone roomsFlexibility to help your business
  • Designed to optimise space
  • For butchers and bakers, deli and chocolatiers
  • Delivery and installation available, just ask
  • Call us today on 01376 512974
  • Cheese,cold cuts, dairy and fish
  • Ask us for advice on the best products
  • We have a vast experience of the industry
Thornbury Refrigeration can supply frozen or refrigerated chillers 1 We have a range of LOW noise compressors2 Suppliers of Arneg and Foster products3 We can supply newsagents, to keep drinks and food chilled or frozen4 All models are in stock for fast delivery5 from seafood to raw meat to cold drinks6 The foster range can help you plan and prepare7 Cold rooms built and installed8 Keeping food fresh from dairy to meat9 Frozen cabinets and serve overs and chilled dairy10 Free site survey on all remote units11 Dual temperature rooms triple compartment and stand alone rooms12 Designed to optimise space13 For butchers and bakers, deli and chocolatiers14 Delivery and installation available, just ask15 Call us today on 01376 51297416 Cheese,cold cuts, dairy and fish17 Ask us for advice on the best products18 We have a vast experience of the industry19
Call us +44 (0)1376 512974
Thornbury Refrigeration Ltd

We also supply refrigeration multi deck | serve over cabinet | wall multi deck | wall

chiller | island chilled display | low height semi vertical | arneg glass display chiller |

outside motor | inside motor | panama 2 | open deck chiller | multi deck chiller |

chiller cabinet | freezer cabinet | refrigeration cabinet open chiller | with doors |

without doors | upright triple door | two door chest freezer | glass sliding lids | plug in

freezers | integral chiller

Thornbury Refrigeration Ltd| 34 Mill Lane | Witham | CM8 1BP | Tel: 01 376 512974
Thornbury Refrigeration Ltd 34 Mill Lane Witham Essex CM8 1BP Tel: 01 376 512974
Dairy Cabinets
Freezer Cabinets
Cold Rooms
Serve Over Cabinets
Catering & Bakery Cabinets
Cake & Hot Food Cabinets
Products

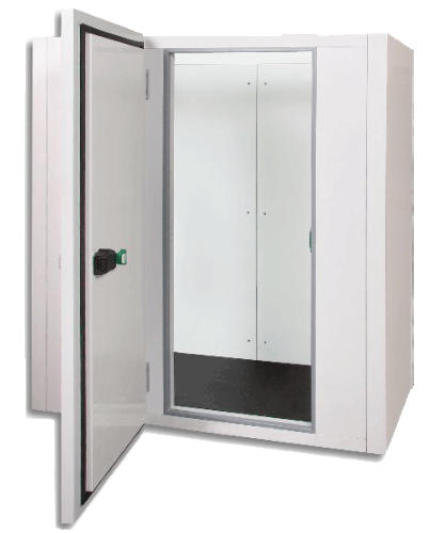

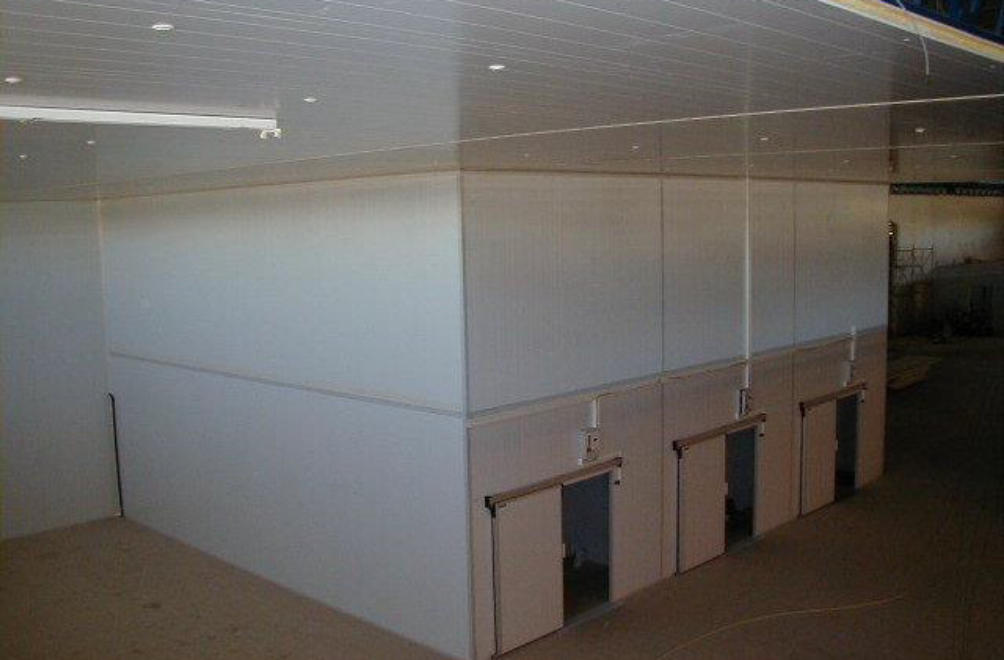

Chiller/Freezer cold room prices from £ 2,290.00p + vat

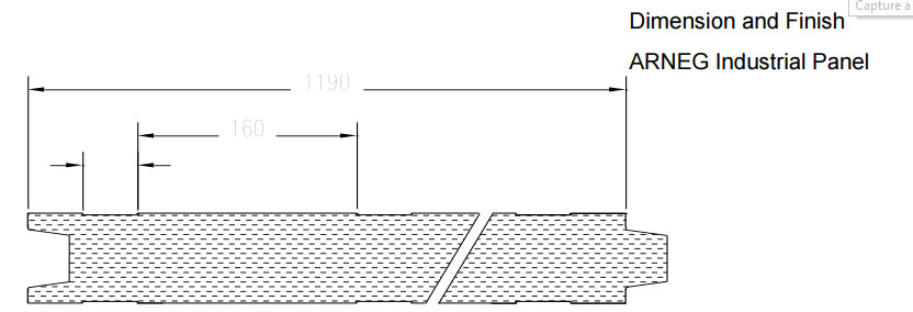

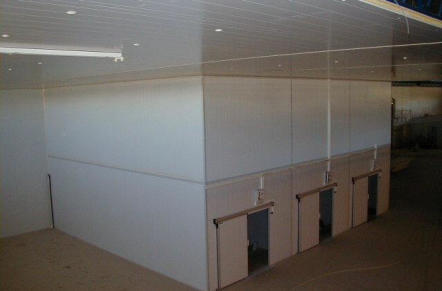

INDUSTRIAL COLD ROOM PANELS
BOMBAY 4 IND.
* GENERAL CHARACTERISTICS PANELS COMPOSITION: Insulating core of high-density polyurethane foam, foamed in place between the metal sheets. Dry joint, male / female type fitting. Coupling by cam locks, placed on the panel edges, in order to facilitate connection in the assembly phase. FINISH: VERTICAL AND ROOF PANELS Interior and exterior wall: Standard: Zinc coated, thermo-lacquered sheet, 6/10mm thick. Interior and exterior surface slightly ribbed, white in colour, RAL 9002. Optional: Plastic coated sheet. Stainless steel sheet. Galvanized steel sheet. Smooth surface on both faces FIRE RESISTANCE: M3 panel INSULATION: Foamed in place polyurethane. Characteristics:
Mean density (Kg/m3)
40 / 42
Resistance to compression (Kg/cm2)
1.4 / 1.7
Thermal conducivity (Kcal/hmºC)
0.018 / 0.020
Working temperatures max./mim. (ºC)
+60 / -100
Resistance to f ire (DIN 4102 / NFP 92503)
B3 / M4
Injection type
High pressure
Expansion gas
HFA 134a
POLYURETHANE SPECIFICATIONS
* COATING OF ARNEG PANELS MANUFACTURER: LA MAGONA D'ITALIA PRODUCT TYPE: THERMO-LACQUERED SHEETS COLOUR: WHITE 20/221 - RAL 9002 SHEET DESCRIPTION: Cold laminated, galvanized with 100 gr/m2 steel base. Thermo-lacquered exterior surface coating with 25 my thick polyester lacquer + primer. 60 my thick protective plastic film. Interior surface coating with 5/7 my primer for polyurethane. Food use certificate, in accordance with the Italian ministerial order D.M. 21/03/1973 * PANEL DIMENSIONS WIDTH 1190mm. HEIGHT Up to 12000mm. THICKNESS From 60mm to 240mm, in 20mm increments.

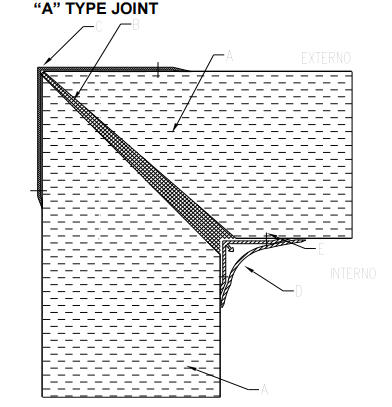

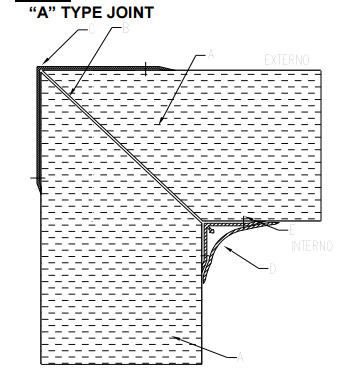

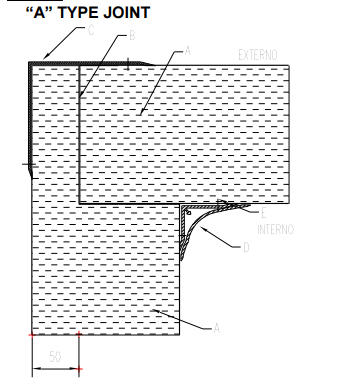

VERTICAL / ROOF COUPLING POSITIVE TEMP. VERTICAL / VERTICAL COUPLING POSITIVE TEMP.
A: ISOTHERMAL PANEL B: SILICONE JOINT C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Factory made notching on the shortest side of the panel (vertical/ roof coupling) Notching on the longest side of the panel (vertical/vertical coupling) executed on site by assembler.
VERTICAL / VERTICAL COUPLING POSITIVE TEMP.
A: ISOTHERMAL PANEL B: SILICONE JOINT C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Cut on the longest side of the panel (vertical/vertical coupling) made on site by assembler.
VERTICAL / ROOF COUPLING NEGATIVE TEMP. VERTICAL / VERTICAL COUPLING NEGATIVE TEMP.
A : ISOTHERMAL PANEL B: POLYURETHANE FOAMED ON SITE C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Factory made notching on the shortest side of the panel (vertical/ roof coupling). Notching on the longest side of the panel (vertical/vertical coupling) executed on site by assembler.
VERTICAL / VERTICAL COUPLING NEGATIVE TEMP.
A : ISOTHERMAL PANEL B: ON SITE POLYURETHANE FOAMING C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Cut on the longest side of the panel (vertical/vertical coupling) made on site by assembler.

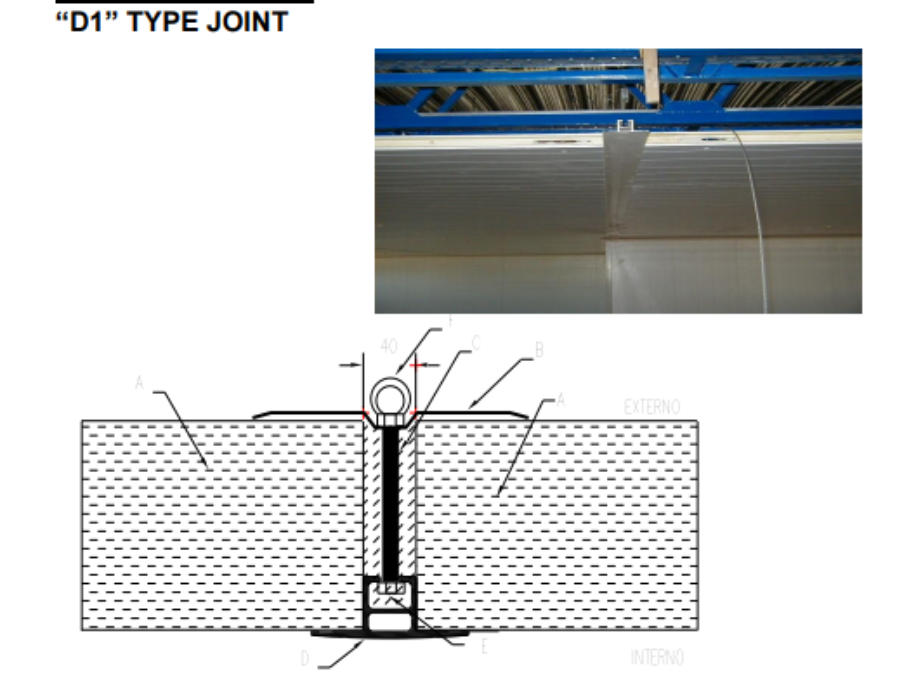

ROOF COUPLING NEGATIVE AND POSITIVE TEMPERATURES “D1” TYPE JOINT

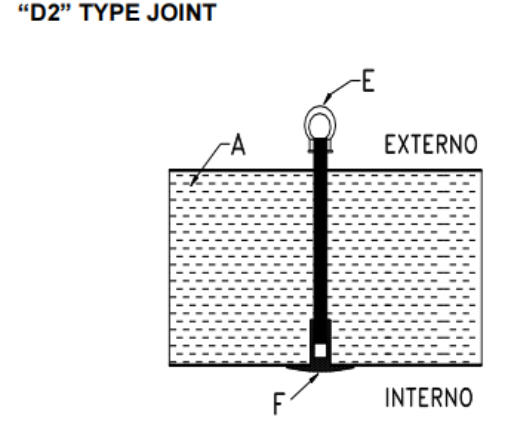

SINGLE PANEL ROOF SUSPENSION
A : ROOF ISOTHERMAL PANEL (SINGLE PANEL) E : M10 EYELET SCREW (2pcs.) F: NYLON LINK BLOCK WITH M10 THREAD (2pcs) F: NYLON WASHER FOR M10 LINK BLOCK (2pcs) STIFFENER (2pcs) STEEL CABLE CONNECTION CLAMP (4pcs) 5mm STEEL CABLE (5m)

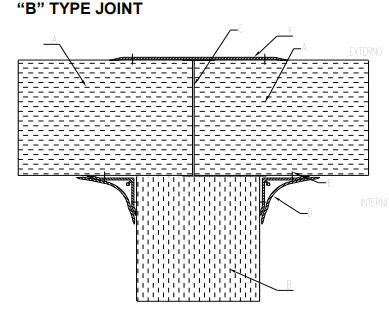

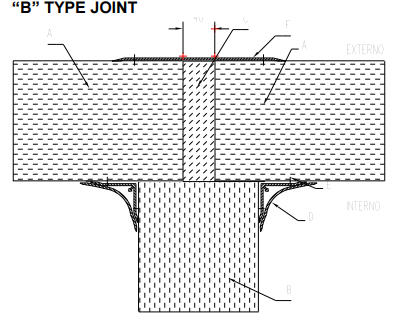

HORIZONTAL PARTITION COUPLING POSITIVE TEMP. VERTICAL PARTITION COUPLING P.T. (+) / L.T. (-)
A : VERTICAL OR ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C: 30x30mm Al CORNER PIECE +HYGIENE PROFILE D : SHEET CUTTING ON SITE (10mm minimum) E: 4.0x14mm Al FASTENING RIVETS
HORIZONTAL PARTITION COUPLING P. T.
A : ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C : SEALING THROUGH POLYURETHANE MONO COMPONENT D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVET
HORIZONTAL PARTITION COUPLING L.T. (NEGATIVE)
A : ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C : POLYURETHANE FOAMING ON SITE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS F: 8/10 GALVANIZED FINISHING SHEET

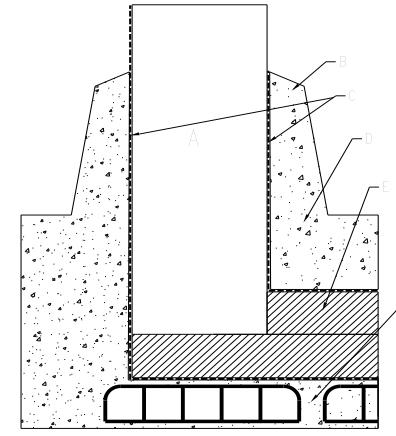

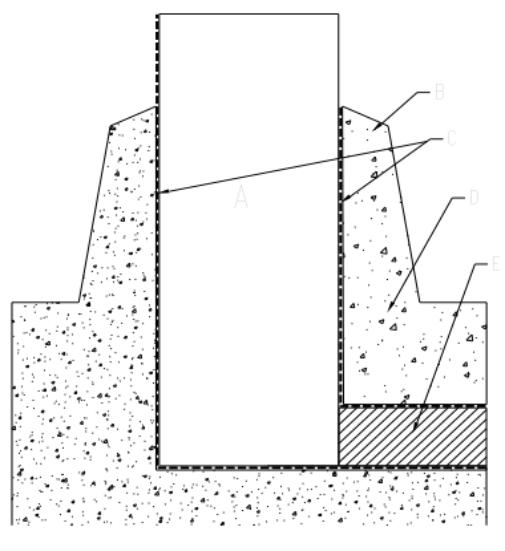

FLOOR COUPLING L.T. (NEGATIVE TEMP.) (TRADITIONAL INSULATION OF THE FLOOR – ON SITE)
FLOOR COUPLING P.T. (POSITIVE TEMP.) (TRADITIONAL INSULATION OF THE FLOOR – ON SITE)
A : ISOTHERMAL PANEL B: CEMENT BULKHEAD C : STEAM BARRIER D: REINFORCED CEMENT FLOOR E: 40kg/m3 / A.N.C.POLYURETHANE INSULATION.
A : ISOTHERMAL PANEL. B: 15/10 x 180 GALVANIZED SHEET PROFILE. D : Al ROOF SUPPORT PROFILE, PAINTED GREY E: NYLON LINK BLOCK WITH M10 THREAD (2pcs) C/F: M10 EYELET SCREW (2pcs) POLYURETHANE FOAMED ON SITE 4.0x14mm Al FASTENING RIVETS (12pcs) STIFFENER (2pcs) STEEL CABLE CONNECTION CLAMP (4pcs) 5mm STEEL CABLE (5m)
Call us +44 (0)1376 512974
Thornbury Refrigeration Ltd

Cold Rooms

Coldrooms made to measure. All temperatures can be supplied. Fully installed Prices on application. Bespoke design to optimise space available, any size, shape or height. Doors, refrigeration units and shelving can be positioned anywhere to maximise space. Adjustable panel sizes for any sites with limited or tight access Dual temperature rooms, triple compartment and stand alone rooms to suit your needs. Any door widths to suit application.

We also supply refrigeration multi deck | serve over cabinet | wall multi deck | wall

chiller | island chilled display | low height semi vertical | arneg glass display chiller |

outside motor | inside motor | panama 2 | open deck chiller | multi deck chiller |

chiller cabinet | freezer cabinet | refrigeration cabinet open chiller | with doors |

without doors | upright triple door | two door chest freezer | glass sliding lids | plug in

freezers | integral chiller

INDUSTRIAL COLD ROOM PANELS
BOMBAY 4 IND.
* GENERAL CHARACTERISTICS PANELS COMPOSITION: Insulating core of high-density polyurethane foam, foamed in place between the metal sheets. Dry joint, male / female type fitting. Coupling by cam locks, placed on the panel edges, in order to facilitate connection in the assembly phase. FINISH: VERTICAL AND ROOF PANELS Interior and exterior wall: Standard: Zinc coated, thermo-lacquered sheet, 6/10mm thick. Interior and exterior surface slightly ribbed, white in colour, RAL 9002. Optional: Plastic coated sheet. Stainless steel sheet. Galvanized steel sheet. Smooth surface on both faces FIRE RESISTANCE: M3 panel INSULATION: Foamed in place polyurethane. Characteristics:
Mean density (Kg/m3)
40 / 42
Resistance to compression (Kg/cm2)
1.4 / 1.7
Thermal conducivity (Kcal/hmºC)
0.018 / 0.020
Working temperatures max./mim. (ºC)
+60 / -100
Resistance to f ire (DIN 4102 / NFP 92503)
B3 / M4
Injection type
High pressure
Expansion gas
HFA 134a
POLYURETHANE SPECIFICATIONS
* COATING OF ARNEG PANELS MANUFACTURER: LA MAGONA D'ITALIA PRODUCT TYPE: THERMO-LACQUERED SHEETS COLOUR: WHITE 20/221 - RAL 9002 SHEET DESCRIPTION: Cold laminated, galvanized with 100 gr/m2 steel base. Thermo-lacquered exterior surface coating with 25 my thick polyester lacquer + primer. 60 my thick protective plastic film. Interior surface coating with 5/7 my primer for polyurethane. Food use certificate, in accordance with the Italian ministerial order D.M. 21/03/1973 * PANEL DIMENSIONS WIDTH 1190mm. HEIGHT Up to 12000mm. THICKNESS From 60mm to 240mm, in 20mm increments.
VERTICAL / ROOF COUPLING POSITIVE TEMP. VERTICAL / VERTICAL COUPLING POSITIVE TEMP.
A: ISOTHERMAL PANEL B: SILICONE JOINT C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Factory made notching on the shortest side of the panel (vertical/ roof coupling) Notching on the longest side of the panel (vertical/vertical coupling) executed on site by assembler.
VERTICAL / VERTICAL COUPLING POSITIVE TEMP.
A: ISOTHERMAL PANEL B: SILICONE JOINT C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Cut on the longest side of the panel (vertical/vertical coupling) made on site by assembler.
VERTICAL / ROOF COUPLING NEGATIVE TEMP. VERTICAL / VERTICAL COUPLING NEGATIVE TEMP.
A : ISOTHERMAL PANEL B: POLYURETHANE FOAMED ON SITE C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Factory made notching on the shortest side of the panel (vertical/ roof coupling). Notching on the longest side of the panel (vertical/vertical coupling) executed on site by assembler.
VERTICAL / VERTICAL COUPLING NEGATIVE TEMP.
A : ISOTHERMAL PANEL B: ON SITE POLYURETHANE FOAMING C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Cut on the longest side of the panel (vertical/vertical coupling) made on site by assembler.
ROOF COUPLING NEGATIVE AND POSITIVE TEMPERATURES “D1” TYPE JOINT
A : ISOTHERMAL PANEL. B: 15/10 x 180 GALVANIZED SHEET PROFILE. D : Al ROOF SUPPORT PROFILE, PAINTED GREY E: NYLON LINK BLOCK WITH M10 THREAD (2pcs) C/F: M10 EYELET SCREW (2pcs) POLYURETHANE FOAMED ON SITE 4.0x14mm Al FASTENING RIVETS (12pcs) STIFFENER (2pcs) STEEL CABLE CONNECTION CLAMP (4pcs) 5mm STEEL CABLE (5m)
SINGLE PANEL ROOF SUSPENSION
A : ROOF ISOTHERMAL PANEL (SINGLE PANEL) E : M10 EYELET SCREW (2pcs.) F: NYLON LINK BLOCK WITH M10 THREAD (2pcs) F: NYLON WASHER FOR M10 LINK BLOCK (2pcs) STIFFENER (2pcs) STEEL CABLE CONNECTION CLAMP (4pcs) 5mm STEEL CABLE (5m)
HORIZONTAL PARTITION COUPLING POSITIVE TEMP. VERTICAL PARTITION COUPLING P.T. (+) / L.T. (-)
A : VERTICAL OR ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C: 30x30mm Al CORNER PIECE +HYGIENE PROFILE D : SHEET CUTTING ON SITE (10mm minimum) E: 4.0x14mm Al FASTENING RIVETS
HORIZONTAL PARTITION COUPLING P. T.
A : ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C : SEALING THROUGH POLYURETHANE MONO COMPONENT D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVET
HORIZONTAL PARTITION COUPLING L.T. (NEGATIVE)
A : ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C : POLYURETHANE FOAMING ON SITE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS F: 8/10 GALVANIZED FINISHING SHEET
FLOOR COUPLING L.T. (NEGATIVE TEMP.) (TRADITIONAL INSULATION OF THE FLOOR – ON SITE)
A : ISOTHERMAL PANEL B: CEMENT BULKHEAD C : STEAM BARRIER D: REINFORCED CEMENT FLOOR E: 40kg/m3 / A.N.C.POLYURETHANE INSULATION F: HYGIENE SPACE
FLOOR COUPLING P.T. (POSITIVE TEMP.) (TRADITIONAL INSULATION OF THE FLOOR – ON SITE)
A : ISOTHERMAL PANEL B: CEMENT BULKHEAD C : STEAM BARRIER D: REINFORCED CEMENT FLOOR E: 40kg/m3 / A.N.C.POLYURETHANE INSULATION.
  • Thornbury Refrigeration can supply frozen or refrigerated chillers
  • We have a range of LOW noise compressors
  • Suppliers of Arneg and Foster products
  • We can supply newsagents, to keep drinks and food chilled or frozen
  • All models are in stock for fast delivery
  • from seafood to raw meat to cold drinks
  • The foster range can help you plan and prepare
  • Cold rooms built and installedAsk us for details
  • Keeping food fresh from dairy to meatFresh deli and meat
  • Frozen cabinets and serve overs and chilled dairy
  • Free site survey on all remote unitsVast experience of our industry
  • Dual temperature rooms triple compartment and stand alone roomsFlexibility to help your business
  • Designed to optimise space
  • For butchers and bakers, deli and chocolatiers
  • Delivery and installation available, just ask
  • Call us today on 01376 512974
  • Cheese,cold cuts, dairy and fish
  • Ask us for advice on the best products
  • We have a vast experience of the industry
Thornbury Refrigeration can supply frozen or refrigerated chillers 1 We have a range of LOW noise compressors2 Suppliers of Arneg and Foster products3 We can supply newsagents, to keep drinks and food chilled or frozen4 All models are in stock for fast delivery5 from seafood to raw meat to cold drinks6 The foster range can help you plan and prepare7 Cold rooms built and installed8 Keeping food fresh from dairy to meat9 Frozen cabinets and serve overs and chilled dairy10 Free site survey on all remote units11 Dual temperature rooms triple compartment and stand alone rooms12 Designed to optimise space13 For butchers and bakers, deli and chocolatiers14 Delivery and installation available, just ask15 Call us today on 01376 51297416 Cheese,cold cuts, dairy and fish17 Ask us for advice on the best products18 We have a vast experience of the industry19
Chiller/Freezer cold room prices from £ 2,290.00p + vat
Thornbury Refrigeration Ltd| 34 Mill Lane | Witham | CM8 1BP | Tel: 01 376 512974
Social Media
Thornbury Refrigeration Ltd 34 Mill Lane Witham Essex CM8 1BP Tel: 01 376 512974
Dairy Cabinets
Freezer Cabinets
Cold Rooms
Serve Over Cabinets
Catering & Bakery Cabinets
Cake & Hot Food Cabinets
Contact
Products
P
Call us +44(0)1376 512974
Thornbury Refrigeration Ltd Thornbury Refrigeration Ltd| 34 Mill Lane | Witham | CM8 1BP | Tel: 01 376 512974
Social Media
Thornbury Refrigeration Ltd 34 Mill Lane Witham Essex CM8 1BP Tel: 01 376 512974
Dairy Cabinets
Freezer Cabinets
Cold Rooms
Serve Over Cabinets
Catering & Bakery Cabinets
Cake & Hot Food Cabinets
Contact
Products
  • Thornbury Refrigeration can supply frozen or refrigerated chillers
  • We have a range of LOW noise compressors
  • Suppliers of Arneg and Foster products
  • We can supply newsagents, to keep drinks and food chilled or frozen
  • All models are in stock for fast delivery
  • from seafood to raw meat to cold drinks
  • The foster range can help you plan and prepare
  • Cold rooms built and installedAsk us for details
  • Keeping food fresh from dairy to meatFresh deli and meat
  • Frozen cabinets and serve overs and chilled dairy
  • Free site survey on all remote unitsVast experience of our industry
  • Dual temperature rooms triple compartment and stand alone roomsFlexibility to help your business
  • Designed to optimise space
  • For butchers and bakers, deli and chocolatiers
  • Delivery and installation available, just ask
  • Call us today on 01376 512974
  • Cheese,cold cuts, dairy and fish
  • Ask us for advice on the best products
  • We have a vast experience of the industry
Thornbury Refrigeration can supply frozen or refrigerated chillers 1 We have a range of LOW noise compressors2 Suppliers of Arneg and Foster products3 We can supply newsagents, to keep drinks and food chilled or frozen4 All models are in stock for fast delivery5 from seafood to raw meat to cold drinks6 The foster range can help you plan and prepare7 Cold rooms built and installed8 Keeping food fresh from dairy to meat9 Frozen cabinets and serve overs and chilled dairy10 Free site survey on all remote units11 Dual temperature rooms triple compartment and stand alone rooms12 Designed to optimise space13 For butchers and bakers, deli and chocolatiers14 Delivery and installation available, just ask15 Call us today on 01376 51297416 Cheese,cold cuts, dairy and fish17 Ask us for advice on the best products18 We have a vast experience of the industry19
INDUSTRIAL COLD ROOM PANELS
BOMBAY 4 IND.
* GENERAL CHARACTERISTICS PANELS COMPOSITION: Insulating core of high-density polyurethane foam, foamed in place between the metal sheets. Dry joint, male / female type fitting. Coupling by cam locks, placed on the panel edges, in order to facilitate connection in the assembly phase. FINISH: VERTICAL AND ROOF PANELS Interior and exterior wall: Standard: Zinc coated, thermo-lacquered sheet, 6/10mm thick. Interior and exterior surface slightly ribbed, white in colour, RAL 9002. Optional: Plastic coated sheet. Stainless steel sheet. Galvanized steel sheet. Smooth surface on both faces FIRE RESISTANCE: M3 panel INSULATION: Foamed in place polyurethane. Characteristics:
Mean density (Kg/m3)
40 / 42
Resistance to compression (Kg/cm2)
1.4 / 1.7
Thermal conducivity (Kcal/hmºC)
0.018 / 0.020
Working temperatures max./mim. (ºC)
+60 / -100
Resistance to f ire (DIN 4102 / NFP 92503)
B3 / M4
Injection type
High pressure
Expansion gas
HFA 134a
POLYURETHANE SPECIFICATIONS
* COATING OF ARNEG PANELS MANUFACTURER: LA MAGONA D'ITALIA PRODUCT TYPE: THERMO-LACQUERED SHEETS COLOUR: WHITE 20/221 - RAL 9002 SHEET DESCRIPTION: Cold laminated, galvanized with 100 gr/m2 steel base. Thermo-lacquered exterior surface coating with 25 my thick polyester lacquer + primer. 60 my thick protective plastic film. Interior surface coating with 5/7 my primer for polyurethane. Food use certificate, in accordance with the Italian ministerial order D.M. 21/03/1973 * PANEL DIMENSIONS WIDTH 1190mm. HEIGHT Up to 12000mm. THICKNESS From 60mm to 240mm, in 20mm increments.
VERTICAL / ROOF COUPLING POSITIVE TEMP. VERTICAL / VERTICAL COUPLING POSITIVE TEMP.
A: ISOTHERMAL PANEL B: SILICONE JOINT C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Factory made notching on the shortest side of the panel (vertical/ roof coupling) Notching on the longest side of the panel (vertical/vertical coupling) executed on site by assembler.
VERTICAL / VERTICAL COUPLING POSITIVE TEMP.
A: ISOTHERMAL PANEL B: SILICONE JOINT C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Cut on the longest side of the panel (vertical/vertical coupling) made on site by assembler.
VERTICAL / ROOF COUPLING NEGATIVE TEMP. VERTICAL / VERTICAL COUPLING NEGATIVE TEMP.
A : ISOTHERMAL PANEL B: POLYURETHANE FOAMED ON SITE C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Factory made notching on the shortest side of the panel (vertical/ roof coupling). Notching on the longest side of the panel (vertical/vertical coupling) executed on site by assembler.
VERTICAL / VERTICAL COUPLING NEGATIVE TEMP.
A : ISOTHERMAL PANEL B: ON SITE POLYURETHANE FOAMING C: 110x110 Al ROOF EXTERNAL PROFILE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS NOTE: Cut on the longest side of the panel (vertical/vertical coupling) made on site by assembler.
ROOF COUPLING NEGATIVE AND POSITIVE TEMPERATURES “D1” TYPE JOINT
A : ISOTHERMAL PANEL. B: 15/10 x 180 GALVANIZED SHEET PROFILE. D : Al ROOF SUPPORT PROFILE, PAINTED GREY E: NYLON LINK BLOCK WITH M10 THREAD (2pcs) C/F: M10 EYELET SCREW (2pcs) POLYURETHANE FOAMED ON SITE 4.0x14mm Al FASTENING RIVETS (12pcs) STIFFENER (2pcs) STEEL CABLE CONNECTION CLAMP (4pcs) 5mm STEEL CABLE (5m)
SINGLE PANEL ROOF SUSPENSION
A : ROOF ISOTHERMAL PANEL (SINGLE PANEL) E : M10 EYELET SCREW (2pcs.) F: NYLON LINK BLOCK WITH M10 THREAD (2pcs) F: NYLON WASHER FOR M10 LINK BLOCK (2pcs) STIFFENER (2pcs) STEEL CABLE CONNECTION CLAMP (4pcs) 5mm STEEL CABLE (5m)
HORIZONTAL PARTITION COUPLING POSITIVE TEMP. VERTICAL PARTITION COUPLING P.T. (+) / L.T. (-)
A : VERTICAL OR ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C: 30x30mm Al CORNER PIECE +HYGIENE PROFILE D : SHEET CUTTING ON SITE (10mm minimum) E: 4.0x14mm Al FASTENING RIVETS
HORIZONTAL PARTITION COUPLING P. T.
A : ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C : SEALING THROUGH POLYURETHANE MONO COMPONENT D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVET
HORIZONTAL PARTITION COUPLING L.T. (NEGATIVE)
A : ROOF ISOTHERMAL PANEL B: PARTITION ISOTHERMAL PANEL C : POLYURETHANE FOAMING ON SITE D: 30x30mm Al CORNER PIECE +HYGIENE PROFILE E: 4.0x14mm Al FASTENING RIVETS F: 8/10 GALVANIZED FINISHING SHEET
FLOOR COUPLING L.T. (NEGATIVE TEMP.) (TRADITIONAL INSULATION OF THE FLOOR – ON SITE)
A : ISOTHERMAL PANEL B: CEMENT BULKHEAD C : STEAM BARRIER D: REINFORCED CEMENT FLOOR E: 40kg/m3 / A.N.C.POLYURETHANE INSULATION F: HYGIENE SPACE
FLOOR COUPLING P.T. (POSITIVE TEMP.) (TRADITIONAL INSULATION OF THE FLOOR – ON SITE)
A : ISOTHERMAL PANEL B: CEMENT BULKHEAD C : STEAM BARRIER D: REINFORCED CEMENT FLOOR E: 40kg/m3 / A.N.C.POLYURETHANE INSULATION.

We also supply refrigeration multi deck | serve over cabinet | wall multi deck | wall

chiller | island chilled display | low height semi vertical | arnegglass display chiller |

outside motor | inside motor | panama 2 | open deck chiller | multi deck chiller |

chiller cabinet | freezer cabinet | refrigeration cabinetopen chiller | with doors |

without doors | upright triple door | two door chest freezer | glass sliding lids | plug in

freezers | integral chiller

Cold Rooms

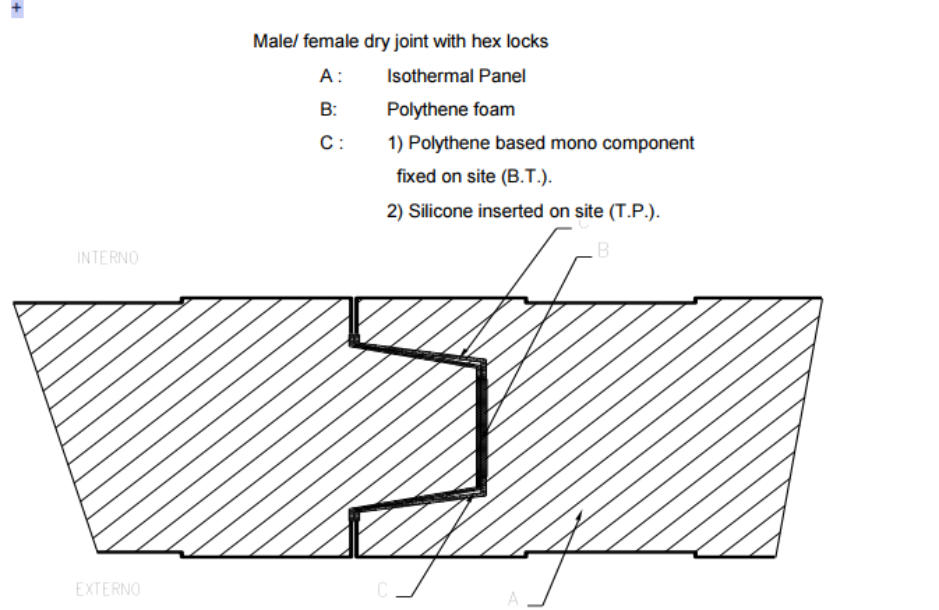

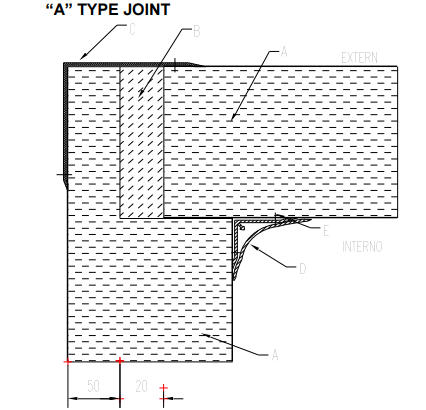

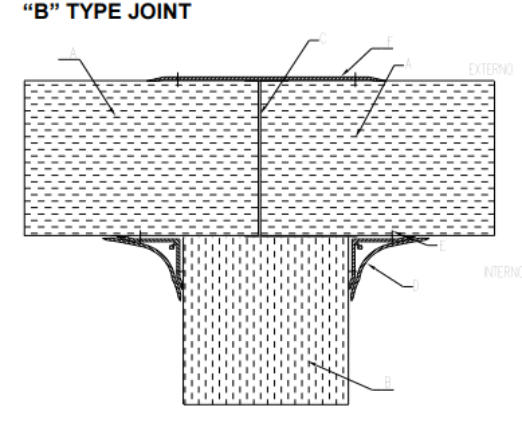

Coldrooms made to measure. All temperatures can be supplied. Fully installed Prices on application. Bespoke design to optimise space available, any size, shape or height. Doors, refrigeration units and shelving can be positioned anywhere to maximise space. Adjustable panel sizes for any sites with limited or tight access Dual temperature rooms, triple compartment and stand alone rooms to suit your needs. Any door widths to suit application.
Chiller/Freezer cold room prices from £ 2,290.00p + vat
